Home Security Project

Hardware

Home Security

HomeSync Project

This project presents a smart home security system based on an STM32 microcontroller in combination with a ESP32-S3. The system integrates three types of sensors: ultrasonic, infrared, and vibration sensors to detect unauthorized entry, abnormal physical disturbances inside the home environment, and Emergency calls from people in our home can be triggered via a remote controller. Data from every detected sensor is displayed on our website.

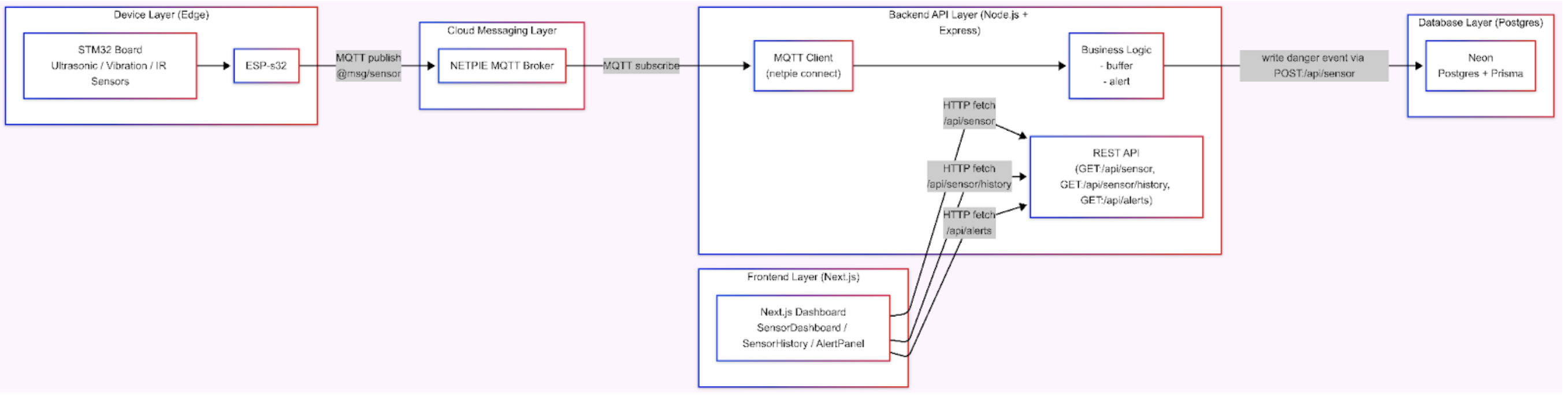

Structure :

Alt text

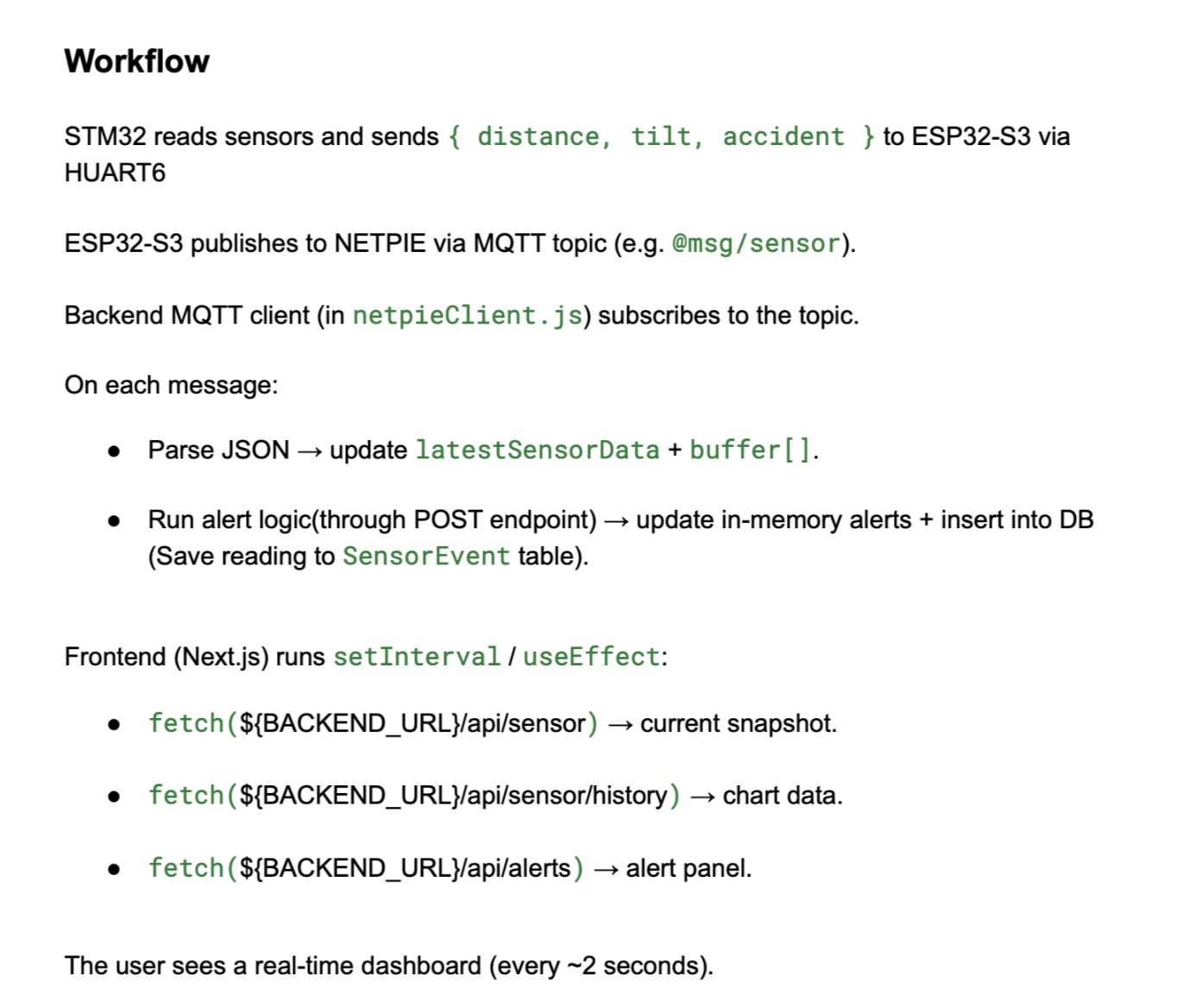

Workflow :

Alt text

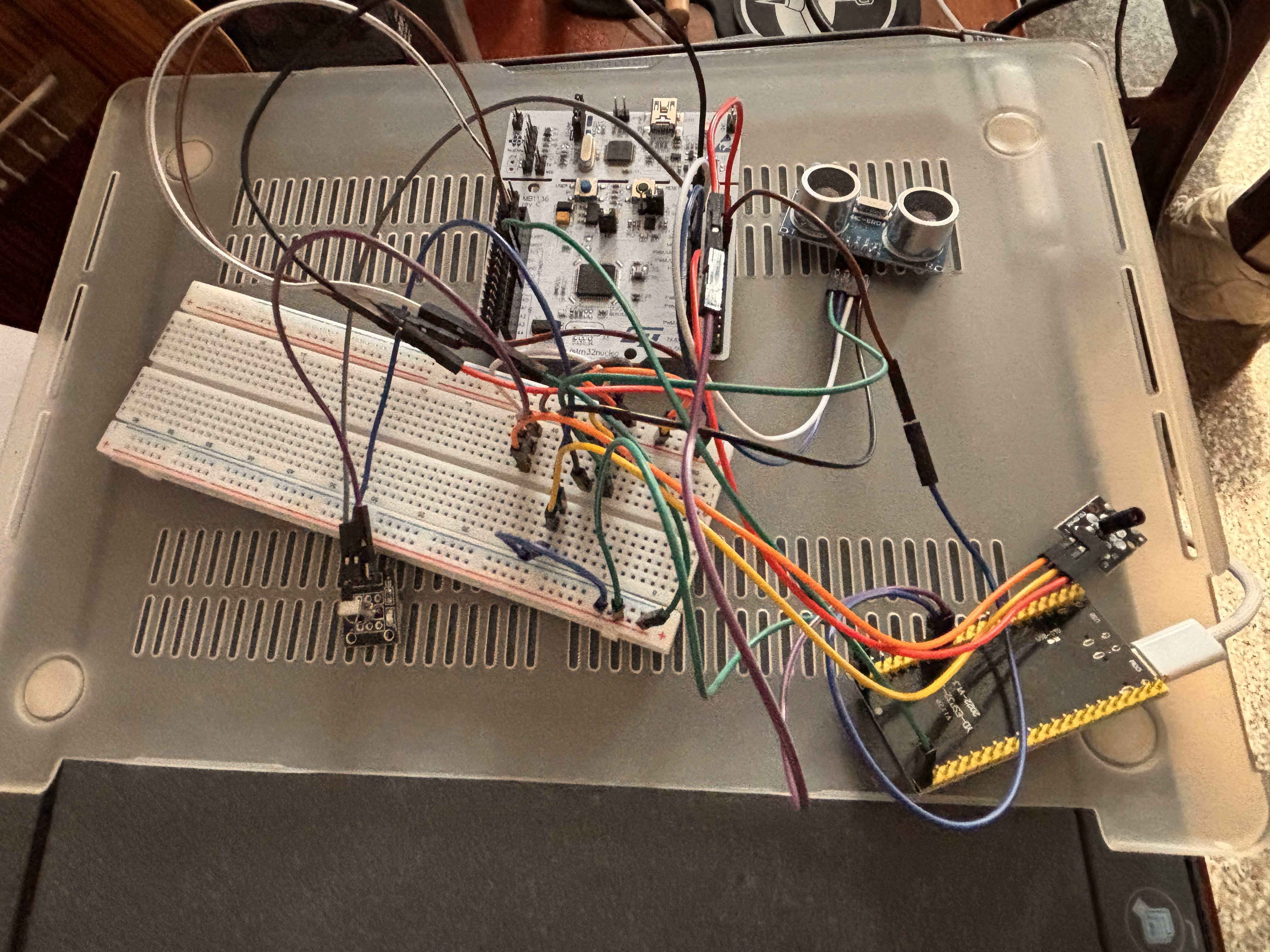

Hardware :

Alt text Alt text

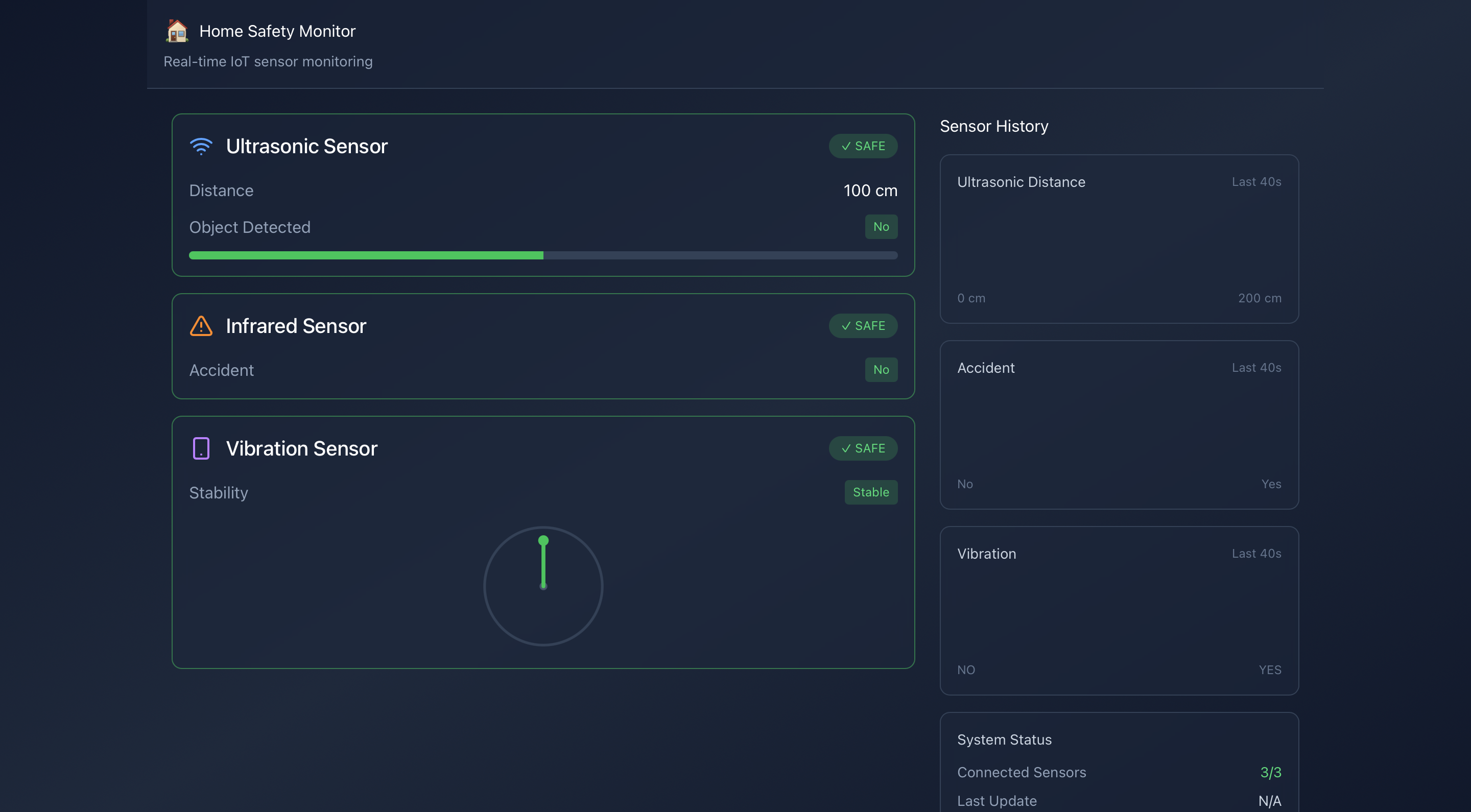

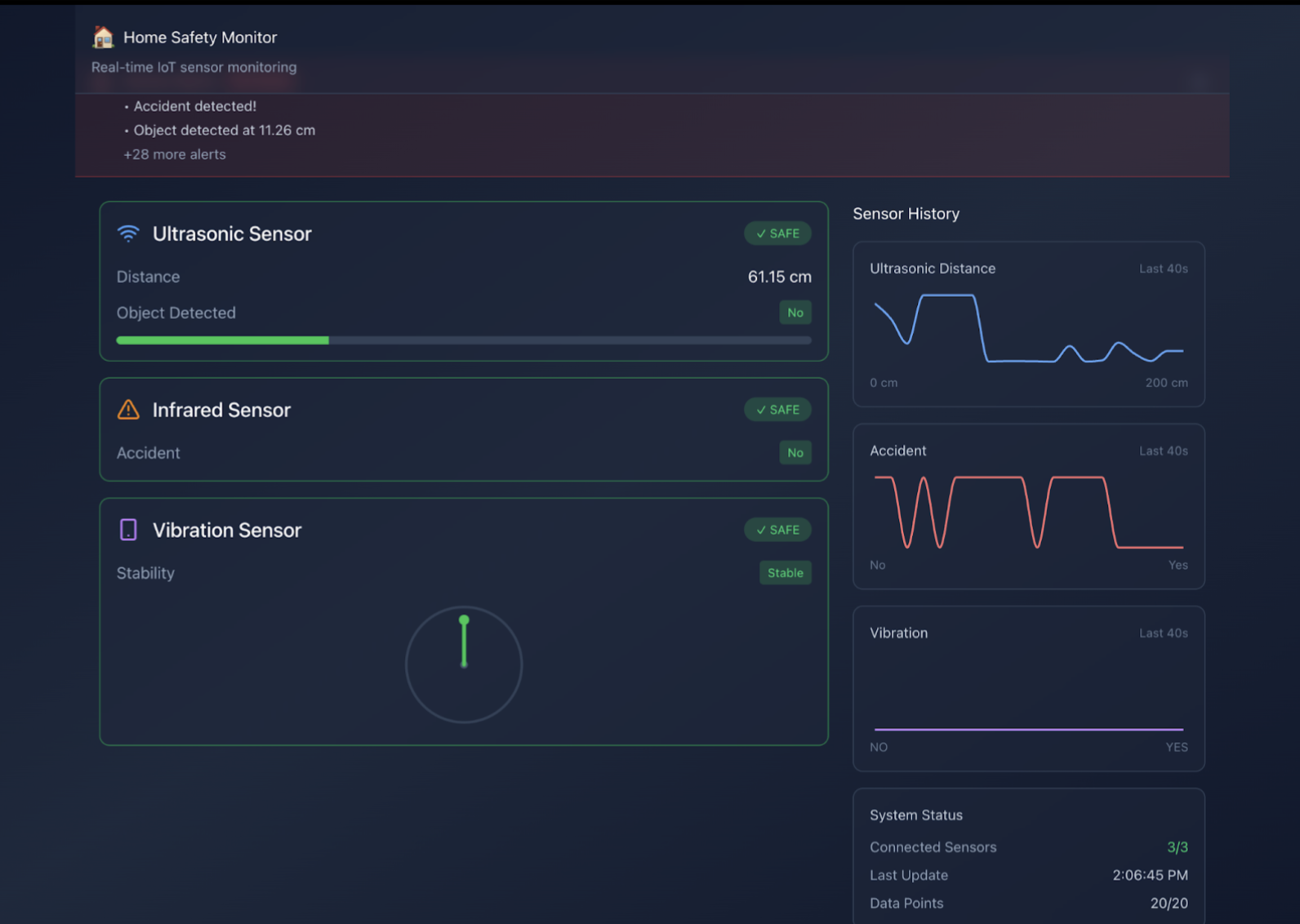

Website :

Alt text Alt text

I implemented the following sections :

  • STM32CubeIDE programming

  • ESP32-S3 programming

  • Hardware connection (Nucleo-F411RE, ESP32-S3, and various sensors)

  • NETPIE setup
